YeaCreate-RK3566 核心板
功能特点
- Core-RK3566核心板集成了四个 1.5 GHz 的 Cortex-A35 内核，并配备了优化的缓存系统，以平衡性能和功耗。
- DDR4/DDR3/DDR3L/LPDDR3/LPDDR2
- 1080P H.265/H.264/VC-1/MPEG/VP8 视频解码器
- 1080P H.264/VP8 视频编码器
- LVDS/MIPI-DSI/RGB接口
- 1 个 8 通道 I2S/TDM 接口，1 个 8 通道 PDM 接口，2 个 2 通道 I2S 接口
- 它兼容 Android 、Debian 、Ubuntu 和使用 Buildroot 生成的嵌入式系统，可适应各种不同的用途。
- 使用核心板+外围板的设计，核心板作为最小系统，而外围板接口板。仅需要2-4层的外围板即可实现快速开发验证。
- 核心板支持不同容量的 DRAM/EMMC 快速定制。
- 核心板已适配了超过10种不同类型的WiFi模组。
- 已预留屏蔽罩接口，便于在严苛的环境中使用。
- 典型的主板包括 1GB 内存、32GB 存储空间。

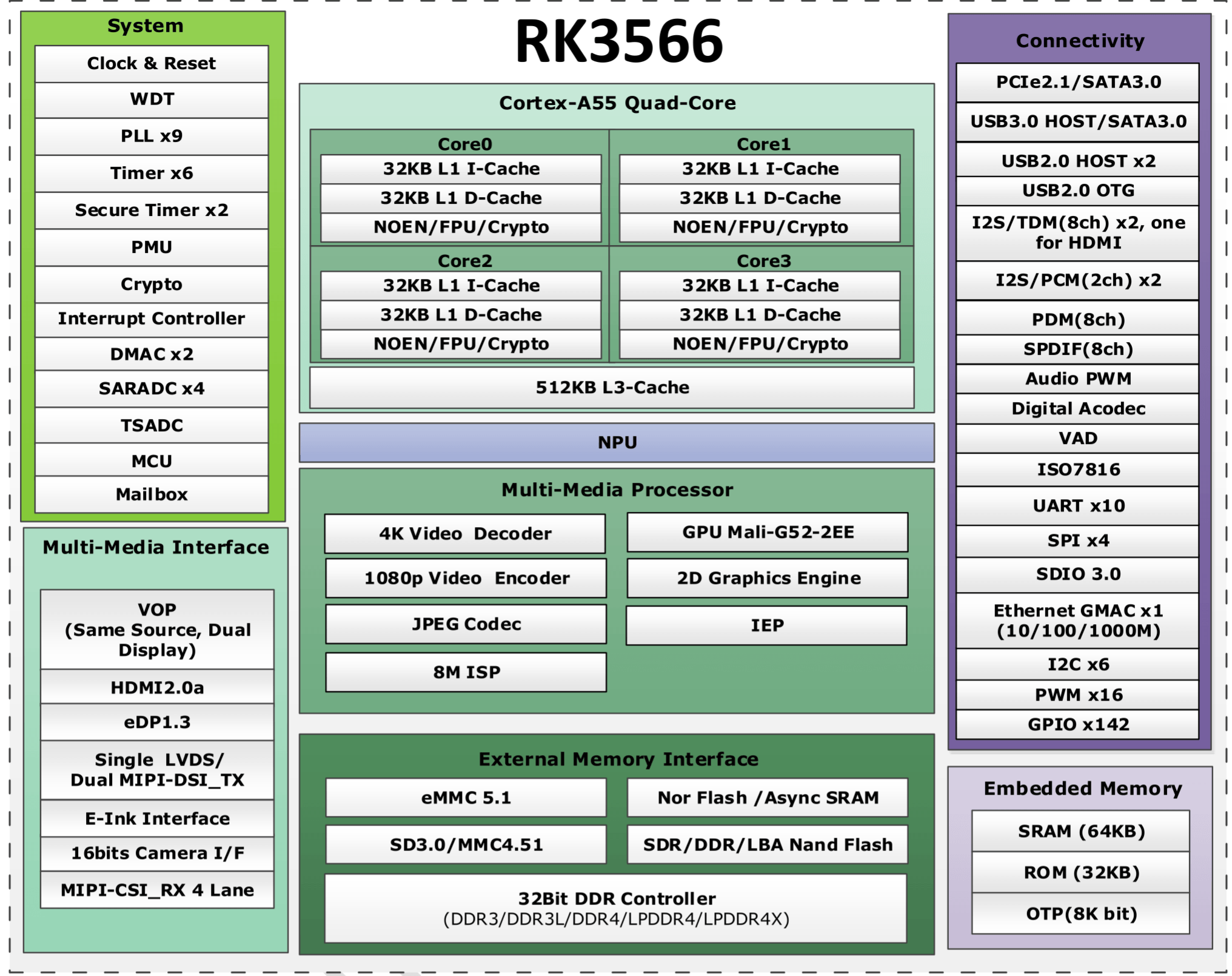

产品主芯片框图
Core-RK3566 标准核心板 CPU 型号为 RK3566，主芯片框图如图所示：
应用场景
外观与尺寸

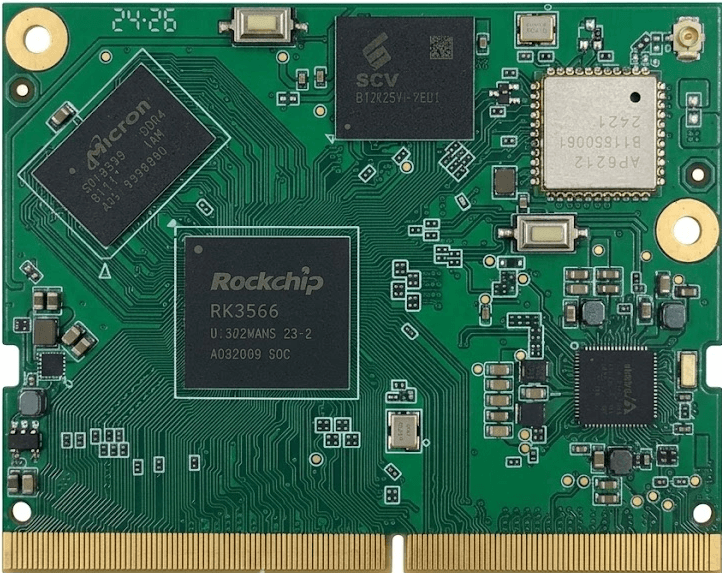

正面图
背面图
| 宽 |
55mm |
| 长 |
69.5mm |
| 公差 |
±0.5mm |
参数规格
基本参数,如下表所示:
| 名称 |
描述 |
| SoC |
RockChip RK3566 |
| CPU |
四核 64 位Cortex-A55 处理器，主频最高1.8GHz |
| GPU |
Mali-G52 1-Core-2EE
支持 OpenGL ES 1.1/2.0/3.2，OpenCL 2.0，Vulkan 1.1
内嵌高性能2D 加速硬件 |
| NPU |
神经网络加速引擎，处理性能高达1个TOPS
支持INT8/INT16/FP16/BFP16 MAC混合操作
支持深度学习框架TensorFlow，TF-lite，Pytorch，Caffe，ONNX，MXNet，Keras，Darknet等模型 |
| 内存 |
LPDDR4/LPDDR4x，默认2GB |
| 储存 |
EMMC默认32GB |
| 以太网 |
集成1路GMAC以太网控制器，支持千兆以太网（1000 Mbps） |
| 多媒体 |
支持4K 60fps H.264/H.265/VP9 视频解码
支持1080P 100fps H.264/H.265视频编码
支持8M ISP |
| 显示接口 |
单显，支持eDp/HDMI2.0/MIPI/LVDS/EBC |
| 音频接口 |
1 × HDMI 音频输出
1 × HPR/L，双声道耳机输出
1 × SPK
1 × MIC输入
1 × VAD |
| USB |
1 × USB2.0 OTG
1 × USB3.0 HOST
2 × USB2.0 HOST |
| PCIe/SATA |
1 × PCIe 2.0
2 × SATA 3.0 |
| 扩展接口 |
10 × UART
4 × SPI
5 × I2C
3 × I2S
3 × SDIO
16 × PWM
4 × ADC
1 × FSPI
116 × GPIO |
核心板功能
| 序号 |
描述 |
| 1 |
IPEX 1 代 座子 |
| 2 |
RK3566 BOOT 按钮 |
| 3 |
RK3566 重启按钮 |
引脚定义说明
核心板接口（奇数）管脚定义(引脚复用功能请参考芯片数据手册)
| 管脚号 |
连接器标号 |
引脚描述 |
| 1 |
USB2_HOST2_DM |
USB2_HOST2_DM |
| 3 |
USB2_HOST2_DP |
USB2_HOST2_DP |
| 5 |
USB2_HOST3_DM |
USB2_HOST3_DM |
| 7 |
USB2_HOST2_DP |
USB2_HOST2_DP |
| 9 |
GPIO4_C1_d |
GPIO4_C1_d |
| 11 |
GPIO4_C0_d |
GPIO4_C0_d |
| 13 |
GPIO4_B7_d |
GPIO4_B7_d |
| 15 |
GPIO4_B5_d |
GPIO4_B5_d |
| 17 |
GPIO4_B3 |
GPIO4_B3_d |
| 19 |
GPIO4_B4_d |
GPIO4_B4_d |
| 21 |
GPIO4_B2_d |
GPIO4_B2_d |
| 23 |
GPIO4_B1_d |
GPIO4_B1_d |
| 25 |
GPIO4_A6 |
GPIO4_A6_d |
| 27 |
GPIO4_A3_d |
GPIO4_A3_d |
| 29 |
GPIO4_A5 |
GPIO4_A5_d |
| 31 |
GPIO4_A0 |
GPIO4_A0_d |
| 33 |
GPIO3_D6 |
GPIO3_D6_d |
| 35 |
GPIO3_D7 |
GPIO3_D7_d |
| 37 |
GPIO3_D3 |
GPIO3_D3_d |
| 39 |
GPIO3_D2_d |
GPIO3_D2_d |
| 41 |
GPIO3_D1_d |
GPIO3_D1_d |
| 43 |
GPIO3_D0_d |
GPIO3_D0_d |
| 45 |
GMAC1_INT/PMEB_GPIO3_C3 |
GPIO3_C3_d |
| 47 |
GMAC1_RSTn_GPIO3_C2 |
GPIO3_C2_d |
| 49 |
PCIE20_PERSTn_M1 |
GPIO3_C1_d |
| 51 |
IR_TX_GPIO3_C0 |
GPIO3_C0_d |
| 53 |
PCIE20_PRSNT_L_GPIO3_B7 |
GPIO3_B7_d |
| 55 |
I2C5_SCL_M0 |
I2C5 时钟信号 |
| 57 |
UART4_TX_M1 |
UART4 传输信号 |
| 59 |
CAMERA1_PDN_L_GPIO3_B0 |
GPIO3_B0_d |
| 61 |
UART4_RX_M1 |
UART4 接收信号 |
| 63 |
MIPICAM1_RST_L_GPIO3_A5 |
GPIO3_A5_d |
| 65 |
LCD1_RST_L_GPIO3_A4 |
GPIO3_A4_d |
| 67 |
GSENSOR_INT_L_GPIO3_A2 |
GPIO3_A2_d |
| 69 |
LCD0_RST_L_GPIO3_A3 |
GPIO3_A3_d |
| 71 |
HDMITX_SDA |
|
| 73 |
HDMITX_SCL |
|
| 75 |
GND |
GND |
| 77 |
MIPI_CSI_RX_D3N |
MIPI_CSI_RX_D3N |
| 79 |
MIPI_CSI_RX_D3P |
MIPI_CSI_RX_D3P |
| 81 |
MIPI_CSI_RX_D2N |
MIPI_CSI_RX_D2N |
| 83 |
MIPI_CSI_RX_D2P |
MIPI_CSI_RX_D2P |
| 85 |
MIPI_CSI_RX_D1N |
MIPI_CSI_RX_D1N |
| 87 |
MIPI_CSI_RX_D1P |
MIPI_CSI_RX_D1P |
| 89 |
MIPI_CSI_RX_D0N |
MIPI_CSI_RX_D0N |
| 91 |
MIPI_CSI_RX_D0P |
MIPI_CSI_RX_D0P |
| 93 |
GND |
GND |
| 95 |
MIPI_DSI_TX1_D3N |
MIPI_DSI_TX1_D3N |
| 97 |
MIPI_DSI_TX1_D3P |
MIPI_DSI_TX1_D3P |
| 99 |
MIPI_DSI_TX1_D2N |
MIPI_DSI_TX1_D2N |
| 101 |
MIPI_DSI_TX1_D2P |
MIPI_DSI_TX1_D2P |
| 103 |
MIPI_DSI_TX1_D1N |
MIPI_DSI_TX1_D1N |
| 105 |
MIPI_DSI_TX1_D1P |
MIPI_DSI_TX1_D1P |
| 107 |
MIPI_DSI_TX1_D0N |
MIPI_DSI_TX1_D0N |
| 109 |
MIPI_DSI_TX1_D0P |
MIPI_DSI_TX1_D0P |
| 111 |
GND |
GND |
| 113 |
MIPI_DSI_TX0_D3N/LVDS_TX0_D3N |
发送数据 D3- |
| 115 |
MIPI_DSI_TX0_D3P/LVDS_TX0_D3P |
发送数据 D3+ |
| 117 |
MIPI_DSI_TX0_D2N/LVDS_TX0_D2N |
发送数据 D2- |
| 119 |
MIPI_DSI_TX0_D2P/LVDS_TX0_D2P |
发送数据 D2+ |
| 121 |
MIPI_DSI_TX0_D1N/LVDS_TX0_D1N |
发送数据 D1- |
| 123 |
MIPI_DSI_TX0_D1P/LVDS_TX0_D1P |
发送数据 D1+ |
| 125 |
MIPI_DSI_TX0_D0N/LVDS_TX0_D0N |
发送数据 D0- |
| 127 |
MIPI_DSI_TX0_D0P/LVDS_TX0_D0P |
发送数据 D0+ |
| 129 |
GND |
GND |
| 131 |
HDMI_PORT_TXCLKN |
HDMI_TXCLK- |
| 133 |
HDMI_PORT_TXCLKP |
HDMI_TXCLK+ |
| 135 |
GND |
GND |
| 137 |
HDMI_PORT_TX0N |
HDMI_TX0- |
| 139 |
HDMI_PORT_TX0P |
HDMI_TX0+ |
| 141 |
HDMI_PORT_TX1N |
HDMI_TX1- |
| 143 |
HDMI_PORT_TX1P |
HDMI_TX1+ |
| 145 |
HDMI_PORT_TX2N |
HDMI_TX2- |
| 147 |
HDMI_PORT_TX2P |
HDMI_TX2+ |
| 149 |
GND |
GND |
| 151 |
PCIE20_RXP |
PCIE20_RX+ |
| 153 |
PCIE20_RXN |
PCIE20_RX- |
| 155 |
PCIE20_TXN |
PCIE20_TX- |
| 157 |
PCIE20_TXP |
PCIE20_TX+ |
| 159 |
GND |
GND |
| 161 |
USB3_HOST1_SSTXP |
USB3_HOST1_SSTX+ |
| 163 |
USB3_HOST1_SSTXN |
USB3_HOST1_SSTX- |
| 165 |
USB3_HOST1_SSRXP |
USB3_HOST1_SSRX+ |
| 167 |
USB3_HOST1_SSRXN |
USB3_HOST1_SSRX- |
| 169 |
USB_OTG0_VBUSDET |
USB_OTG0_VBUS 检测 |
| 171 |
GND |
GND |
| 173 |
EDP_TX_AUXP |
EDP_TX_AUX+ |
| 175 |
EDP_TX_AUXN |
EDP_TX_AUX- |
| 177 |
GND |
GND |
| 179 |
EDP_TX_D0P |
EDP_TX_D0+ |
| 181 |
EDP_TX_D0N |
EDP_TX_D0- |
| 183 |
EDP_TX_D1P |
EDP_TX_D1+ |
| 185 |
EDP_TX_D1N |
EDP_TX_D1- |
| 187 |
EDP_TX_D3N |
EDP_TX_D3- |
| 189 |
EDP_TX_D3P |
EDP_TX_D3+ |
| 191 |
EDP_TX_D2P |
EDP_TX_D2+ |
| 193 |
EDP_TX_D2N |
EDP_TX_D2- |
| 195 |
GND |
GND |
| 197 |
I2S1_SDO3_M0/I2S1_SDI1_M0/PDM_SDI1_M0 |
GPIO1_B2_d |
| 199 |
eMMC_RSTn/FSPI_D2/FLASH_WPn |
GPIO1_C7_d |
| 201 |
I2S1_SDO1_M0/I2S1_SDI3_M0/PDM_SDI3_M0 |
GPIO1_B0_d |
| 203 |
I2C3_SCL_M0 |
I2C3 时钟信号 |
| 205 |
GND |
GND |
| 207 |
SDMMC0_CLK/TEST_CLKOUT/UART5_TX_M0 |
SDMMC0 时钟信号 |
| 209 |
I2C3_SDA_M0 |
I2C3 数据信号 |
| 211 |
FSPI_CLK/FLASH_ALE |
GPIO1_D0_d |
| 213 |
I2C1_SDA_TP |
I2C1 数据信号 |
| 215 |
LCD0_BL_PWM4 |
GPIO0_C3_d |
| 217 |
SDMMC0_DET_L |
SDMMC0_DET_L |
| 219 |
FSPI_D0/FLASH_RDY |
GPIO1_D1 |
| 221 |
VCC_3V3 |
VCC_3V3 |
| 223 |
VCC_3V3 |
VCC_3V3 |
| 225 |
GND |
GND |
| 227 |
VCC3V3_RTC |
VCC3V3_RTC |
| 229 |
VCC_1V8 |
VCC_1V8 |
| 231 |
VCC_1V8 |
VCC_1V8 |
| 233 |
GND |
GND |
| 235 |
GND |
GND |
| 237 |
I2S1_SDO2_M0/I2S1_SDI2_M0/PDM_SDI2_M0 |
GPIO1_B1_d |
| 239 |
USB_OTG_PWREN_H_GPIO0_A5 |
GPIO0_A5_d |
| 241 |
PMIC_EXT_EN |
PMIC_EXT_EN |
| 243 |
VCC3V3_SD |
VCC3V3_SD |
| 245 |
VCC3V3_SD |
VCC3V3_SD |
| 247 |
MIC1_INP |
MIC 差分信号+ |
| 249 |
MIC1_INN |
MIC 差分信号- |
| 251 |
HPL_OUT |
HP 左声道输出 |
| 253 |
EDP_BL_PWM5 |
GPIO0_C4_d |
| 255 |
HPR_OUT |
HP 右声道输出 |
| 257 |
VBAT_SNSP |
VBAT_SNSP |
| 259 |
VBAT_SNSN |
VBAT_SNSN |
核心板接口（偶数）管脚定义(引脚复用功能请参考芯片数据手册)
| 管脚号 |
连接器标号 |
引脚描述 |
| 2 |
GND |
GND |
| 4 |
GND |
GND |
| 6 |
GND |
GND |
| 8 |
GND |
GND |
| 10 |
GND |
GND |
| 12 |
VCC5V0_SYS |
VCC5V0_SYS |
| 14 |
VCC5V0_SYS |
VCC5V0_SYS |
| 16 |
VCC5V0_SYS |
VCC5V0_SYS |
| 18 |
VCC5V0_SYS |
VCC5V0_SYS |
| 20 |
GVCC5V0_SYS |
VCC5V0_SYS |
| 22 |
GPIO4_B6_d |
GPIO4_B6_d |
| 24 |
GPIO4_B0_d |
GPIO4_B0_d |
| 26 |
GPIO4_A4 |
GPIO4_A4_d |
| 28 |
GPIO4_A7_d |
GPIO4_A7_d |
| 30 |
SPDIF_TX_M1 |
SPDIF_TX_M1 |
| 32 |
GPIO4_A1_d |
GPIO4_A1_d |
| 34 |
AUDIO_CTRL_GPIO3_C4 |
GPIO3_C4_d |
| 36 |
GPIO4_A2_d |
GPIO4_A2_d |
| 38 |
GPIO3_D4_d |
GPIO3_D4_d |
| 40 |
GPIO3_D5_d |
GPIO3_D5_d |
| 42 |
GPIO3_C6_d |
GPIO3_C6_d |
| 44 |
GPIO3_C7_d |
GPIO3_C7_d |
| 46 |
AUDIO_CTRL_GPIO3_B5 |
AUDIO_CTRL_GPIO3_B5 |
| 48 |
PWM11_M0_FSYNC_IN_GPIO3_B6 |
GPIO3_B6_d |
| 50 |
I2C5_SDA_M0 |
I2C1 数据信号 |
| 52 |
INT_GPIO3_A7_CON1 |
GPIO3_A7_d |
| 54 |
MIPICAM0_RST_L_GPIO3_A6 |
GPIO3_A6_d |
| 56 |
I2S3_SDI_M1_CON1 |
GPIO4_C6_d |
| 58 |
HP_DET_L_GPIO3_A1 |
GPIO3_A1_d |
| 60 |
HDMITX_CEC_M0 |
HDMITX_CEC 信号 |
| 62 |
I2S3_SDO_M1_CON1 |
GPIO4_C5_d |
| 64 |
I2S3_LRCK_M1_CON1 |
GPIO4_C4_d |
| 66 |
I2S3_MCLK_M1_CON1 |
GPIO4_C2_d |
| 68 |
FSPI_D3/FLASH_CS1n |
GPIO1_D4 |
| 70 |
EDP_PWREN5V0_H_GPIO0_D4_d |
GPIO0_D4_d |
| 72 |
GND |
GND |
| 74 |
I2S3_SCLK_M1_CON1 |
GPIO4_C3_d |
| 76 |
LCD2_PWREN_H_GPIO0_D5_d |
GPIO0_D5_d |
| 78 |
I2S1_SCLK_TX_M0 |
GPIO1_A3_d |
| 80 |
I2S1_MCLK_M0 |
GPIO1_A2_d |
| 82 |
GND |
GND |
| 84 |
MIPI_CSI_RX_CLK1P |
CSI 时钟输入 1+ |
| 86 |
MIPI_CSI_RX_CLK1N |
CSI 时钟输入 1- |
| 88 |
MIPI_CSI_RX_CLK0N |
CSI 时钟输入 0- |
| 90 |
MIPI_CSI_RX_CLK0P |
CSI 时钟输入 0+ |
| 92 |
GND |
GND |
| 94 |
MIPI_DSI_TX1_CLKP |
发送时钟 CLK+ |
| 96 |
MIPI_DSI_TX1_CLKN |
发送时钟 CLK- |
| 98 |
GND |
GND |
| 100 |
UART2_TX_M0_DEBUG |
UART2 发送信号 |
| 102 |
I2S1_LRCK_RX_M0/PDM_CLK0_M0 |
GPIO1_A6_d |
| 104 |
GPIO0_D6_d |
GPIO0_D6_d |
| 106 |
TP_RST_L_GPIO0_B6 |
GPIO0_B6 |
| 108 |
I2S1_SCLK_RX_M0/PDM_CLK1_M0 |
GPIO1_A4_d |
| 110 |
I2S1_LRCK_TX_M0 |
GPIO1_A5_d |
| 112 |
GND |
GND |
| 114 |
MIPI_DSI_TX0_CLKN/LVDS_TX0_CLKN |
发送时钟 CLK- |
| 116 |
MIPI_DSI_TX0_CLKP/LVDS_TX0_CLKP |
发送时钟 CLK+ |
| 118 |
GND |
GND |
| 120 |
I2S1_SDO0_M0 |
GPIO1_A7_d |
| 122 |
HDMI_TX_HPDIN |
HDMI 热插拔检测 |
| 124 |
I2S1_SDI0_M0/PDM_SDI0_M0 |
GPIO1_B3_d |
| 126 |
PWM7_IR |
GPIO0_C6_d |
| 128 |
UART2_RX_M0_DEBUG |
UART2 接收信号 |
| 130 |
LCD1_PWREN_H_GPIO0_C5 |
GPIO0_C5_d |
| 132 |
RTCIC_INT_L_GPIO0_C0 |
GPIO0_C0_d |
| 134 |
EDP_LED_EN_H_GPIO0_C7 |
GPIO0_C7_d |
| 136 |
CHG_DET |
GPIO0_B0 |
| 138 |
TP_INT_L_GPIO0_B5 |
GPIO0_B5 |
| 140 |
DVP_PWREN0_H_GPIO0_C1 |
GPIO0_C1_d |
| 142 |
GND |
GND |
| 144 |
INT#_SENSOR |
GPIO0_B7_d |
| 146 |
REFCLK_OUT_CAM |
GPIO0_A0_d |
| 148 |
GND |
GND |
| 150 |
PCIE20_REFCLKP |
PCIE20_REFCLK+ |
| 152 |
PCIE20_REFCLKN |
PCIE20_REFCLK- |
| 154 |
GND |
GND |
| 156 |
USB3_HOST1_DP |
USB3_HOST1+ |
| 158 |
USB3_HOST1_DM |
USB3_HOST1- |
| 160 |
GND |
GND |
| 162 |
USB_OTG0_DM |
USB_OTG0- |
| 164 |
USB_OTG0_DP |
USB_OTG0+ |
| 166 |
SDMMC0_D1/UART2_RX_M1/UART6_RX_M1/PWM9_M1 |
SDMMC0 数据 1 |
| 168 |
SDMMC0_D3/ARM_JTAG_TMS |
SDMMC0 数据 3 |
| 170 |
SDMMC0_CMD/PWM10_M1/UART5_RX_M0 |
SDMMC0 命令信号 |
| 172 |
SDMMC0_D0/UART2_TX_M1/UART6_TX_M1/PWM8_M1 |
SDMMC0 数据 0 |
| 174 |
B_RK809_32KOUT_WIFI |
RK809_32K 时钟输 出 |
| 176 |
SDMMC0_D2/ARM_JTAG_TCK |
SDMMC0 数据 2 |
| 178 |
VCC_BAT |
VCC_BAT |
| 180 |
B_SOC_PCM_OUT |
B_SOC_PCM_OUT |
| 182 |
B_SOC_PCM_IN |
B_SOC_PCM_IN |
| 184 |
SARADC_VIN3 |
SARADC_VIN3 |
| 186 |
SARADC_VIN0_KEY/RECOVERY |
RECOVERY 固件升级 |
| 188 |
B_SOC_PCM_CLK |
B_SOC_PCM_CLK |
| 190 |
SARADC_VIN2_LCD_ID |
SARADC_VIN2_LCD_ID |
| 192 |
I2S1_SDO0_M0_RK809 |
I2S1_SDO0_M0_RK809 |
| 194 |
I2S1_SDI0_M0/PDM_SDI0_M0_RK809 |
I2S1_SDI0_M0/PDM_SDI0_M0_RK809 |
| 196 |
SARADC_VIN1_EVB_HW_ID |
SARADC_VIN1_EVB_HW_ID |
| 198 |
USB_OTG0_ID |
USB_OTG0_ID 信号 |
| 200 |
PDM_CLK0_M0_RK809 |
PDM_CLK0_M0_RK809 |
| 202 |
B_SOC_PCM_SYNC |
GPIO2_C3_d |
| 204 |
I2S1_LRCK_TX_M0_RK809 |
I2S1_LRCK_TX_M0_RK809 |
| 206 |
I2S1_SCLK_TX_M0_RK809 |
I2S1_SCLK_TX_M0_RK809 |
| 208 |
I2S1_MCLK_M0_RK809 |
I2S1_MCLK_M0_RK809 |
| 210 |
I2C1_SCL_TP |
I2C 时钟信号 |
| 212 |
RESETn |
复位键 |
| 214 |
EDP_HDPIN_GPIO0_C2 |
GPIO0_C2_d |
| 216 |
FSPI_D1/FLASH_RDn |
GPIO1_D2 |
| 218 |
FSPI_CS0n/FLASH_CS0n |
GPIO1_D3 |
| 220 |
VCC_3V3 |
VCC_3V3 |
| 222 |
VCC_3V3 |
VCC_3V3 |
| 224 |
GND |
GND |
| 226 |
RK809_PWRON |
开关机键 |
| 228 |
VCC_1V8 |
VCC_1V8 |
| 230 |
VCC_1V8 |
VCC_1V8 |
| 232 |
GND |
GND |
| 234 |
VCCIO_ACODEC |
VCCIO_ACODEC |
| 236 |
GND |
GND |
| 238 |
PCIE_PWREN_H_GPIO0_A6 |
GPIO0_A6_d |
| 240 |
VCCIO_SD |
VCCIO_SD |
| 242 |
SPKP_OUT |
SPK 差分信号+ |
| 244 |
SPKN_OUT |
SPK 差分信号- |
| 246 |
GND |
GND |
| 248 |
GND |
GND |
| 250 |
HP_SNS |
HP_SNS |
| 252 |
VCC3V3_PMU |
VCC3V3_PMU |
| 254 |
VCC3V3_PMU |
VCC3V3_PMU |
| 256 |
VCC5V0_SYS |
VCC5V0_SYS |
| 258 |
VCC5V0_SYS |
VCC5V0_SYS |
| 260 |
VCC5V0_SYS |
VCC5V0_SYS |
中文
EN
