Ntablet is a open source linux tablet

Product Feature

Specification

Operating System

Linux/Android

CPU:

RK3288, Quad-core,1.8GHz

GPU:

Mali-T760 Quad-core GPU

RAM:

2GB LPDDR3;

NAND FLASH:

16GB EMMC

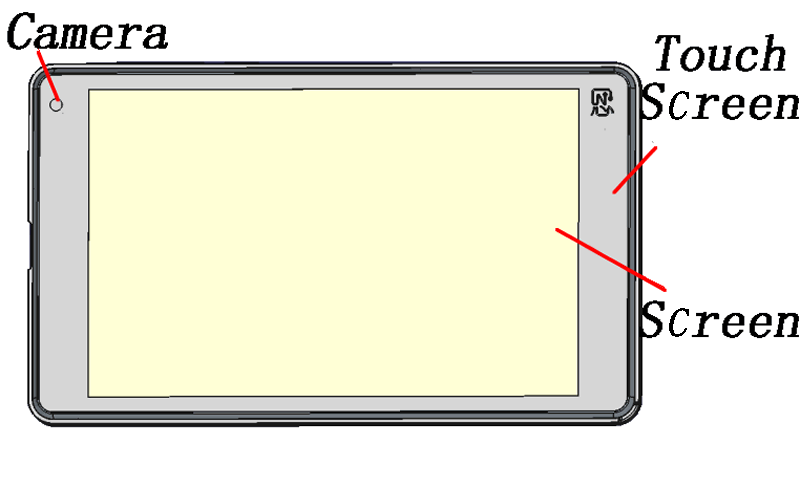

Camera

OV5648 5M front camera

Display

7" 1200*1920 IPS

Touch screen

5 point glass+glass

Battery

3.8V/4800mAh high capacity high voltage battery

Wireless

AP6255 802.11

a/b/g/n/ac + BT4.0

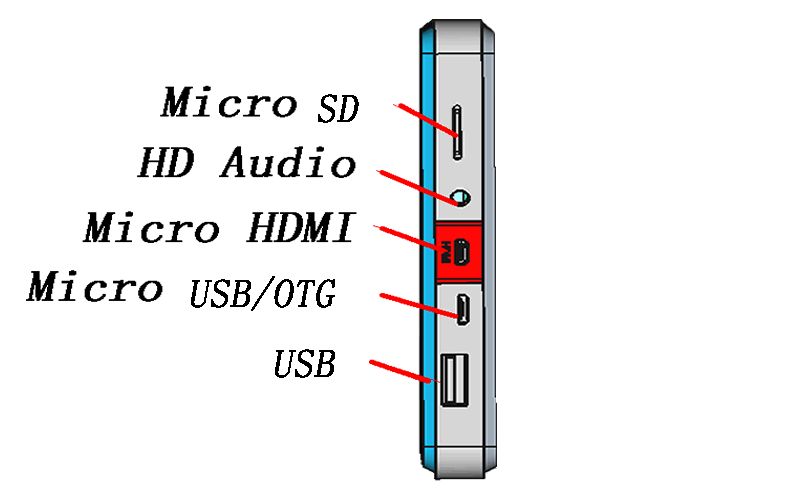

Micro USB2.0 Interface

OTG features included;5V-2A for charging supported

Full-size USB

Full size USB2.0 interface

HDMI Interface

Micro HDMI,

Headphone Seat

φ3.5 Headphone jack,CTIA supported

TF Interface

Max. 32GB

Serial Port

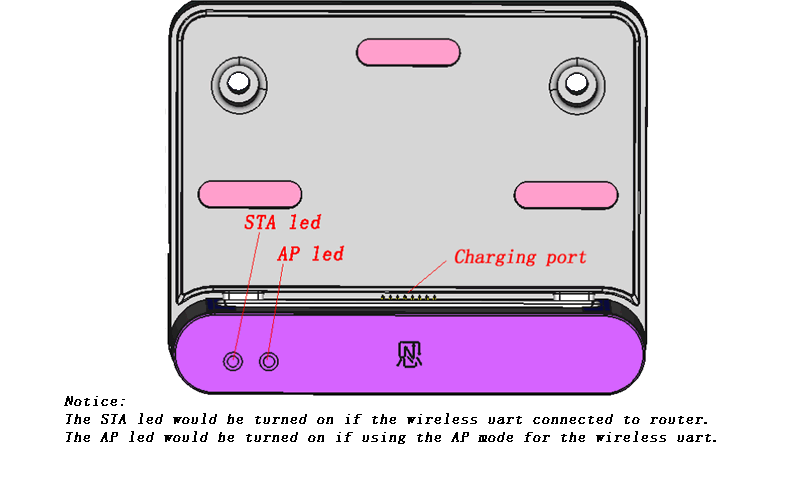

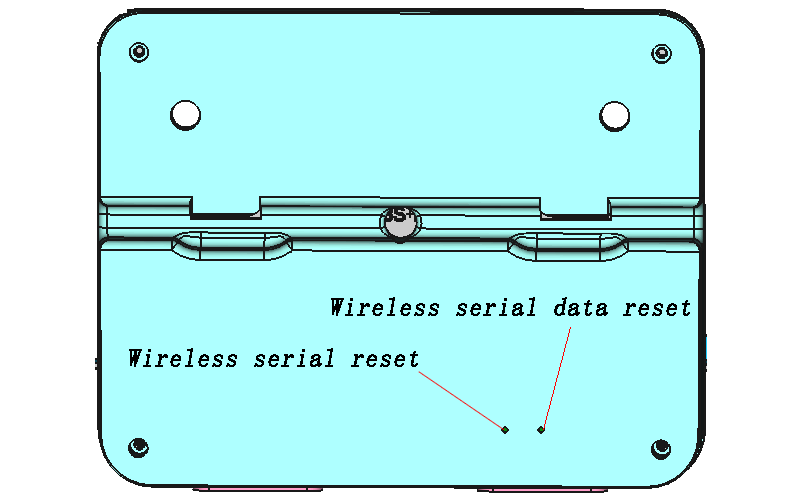

Wireless Serial Port included in the charging dock(option)

RS232 wire Serial Port included in the GPIO connector

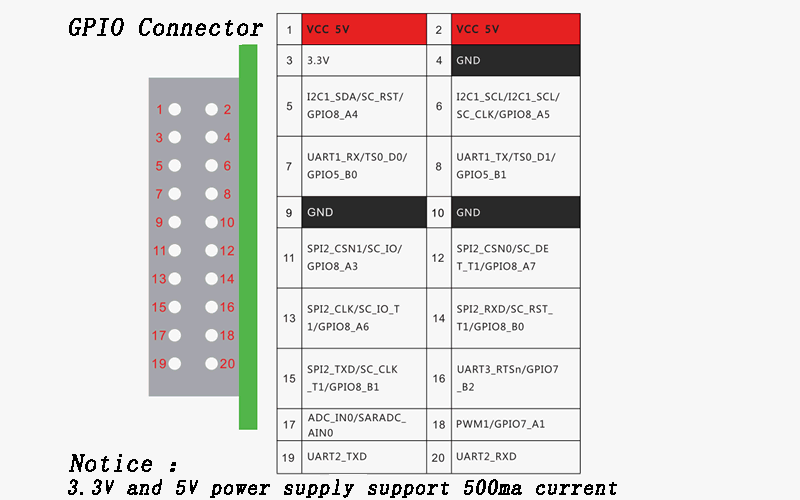

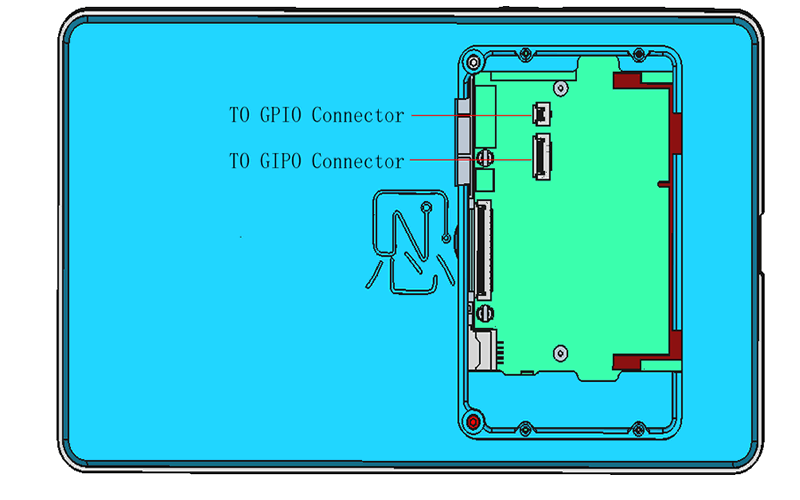

GPIO:

5V-500ma port x 2;

3.3V-500ma port x 1;

I2C x 1;

UART x 2;

SPI x 1;

PWMX1;

ADC_IN X 1;

Power

Charging dock supports wide voitage 90V-230V

Wireless debug port connected to UART2(option)
